Multifunctional body & Efficient Reliable
D15 has a new modular quick release structure, four-axis folding arm design, the use of full carbon fiber high-strength fuselage design, greatly reducing the weight of the UAV body; 15km HD transmission system and customized expansion accessories in one, optimizing the mechanism of aerial operations to meet the needs of inspection, search and rescue, law enforcement, firefighting, electric power, security, and other professional areas of the flight needs. D15 has an unloaded 71-minute long flight time, maximum load of 15kg. The D15 has a long endurance flight time of 71 minutes unloaded and a maximum load capacity of 15kg.
Quick release design-Time-saving & Portable
D15 is a foldable (propellers, drone arms) portable industry drone, not only can be quickly folded and unfolded, but also the front part of the arms can be disassembled, which reduces the difficulty of packing for the staff, saves the time of assembling, and greatly reduces the requirements for transportation tools.

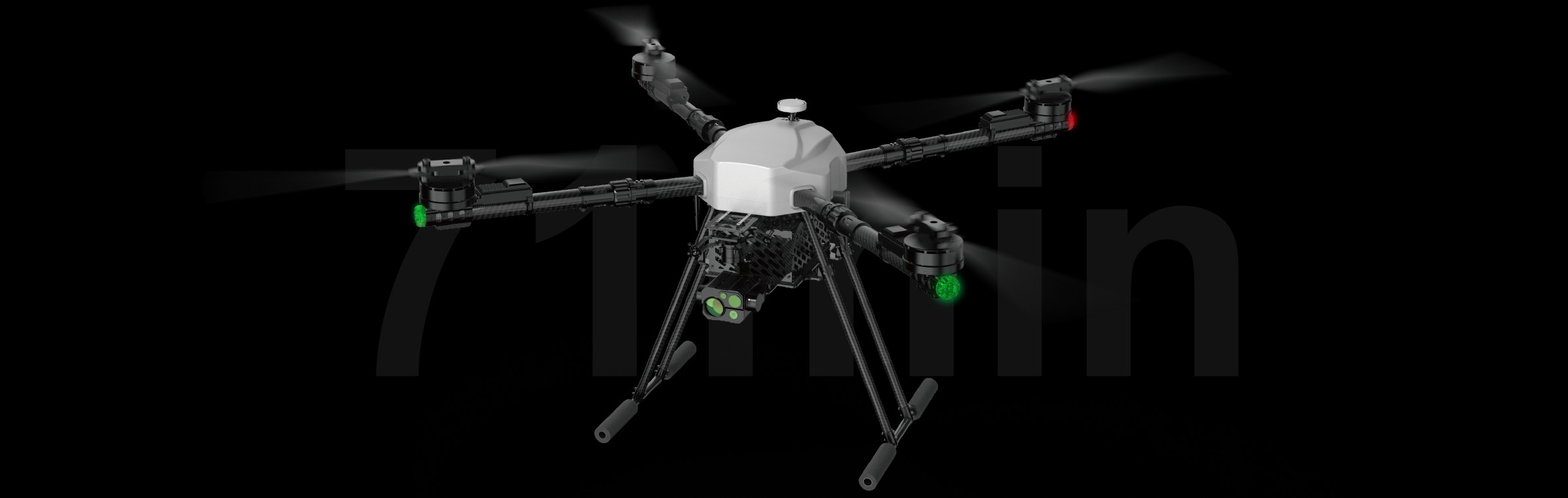

Flight stability & Natural strength
The maximum endurance of flight without loading is more than 71 minutes, wind resistance Level 7.The users can control the drone through the ground station in real time, and check the status of the drone in real time, regardless of geographical limitations.D15 is easy to carry and has a short take-off preparation time, and its performance is in line with the use of entry-level industrial drones.

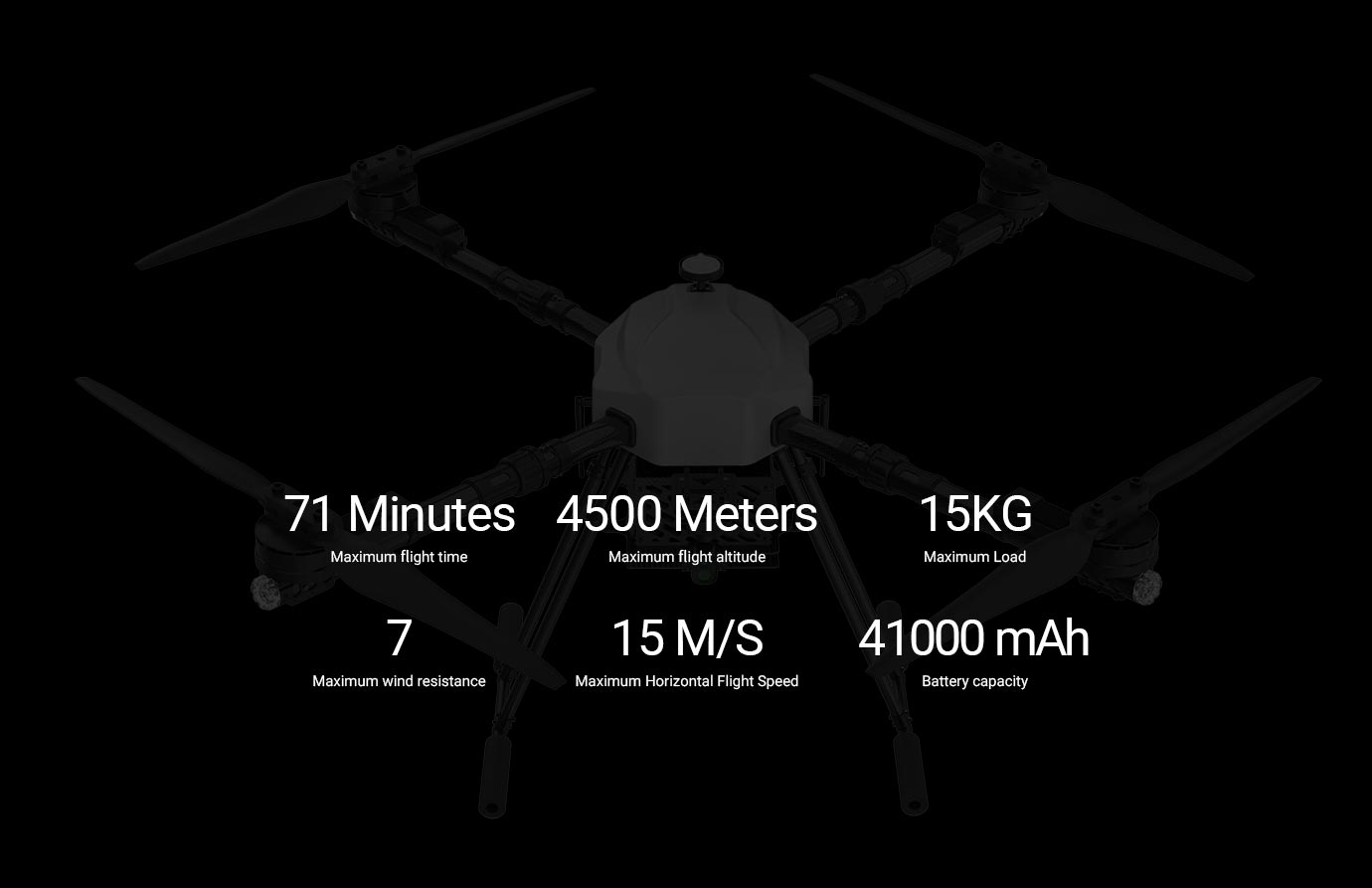

71 Mins
Maximum flight time
4500Meters
Maximum flight altitude
15KG
Maximum Load
7
Maximum wind
resistance
15m/s
Maximum Horizontal
Flight Speed
41000mAh
Battery capacity

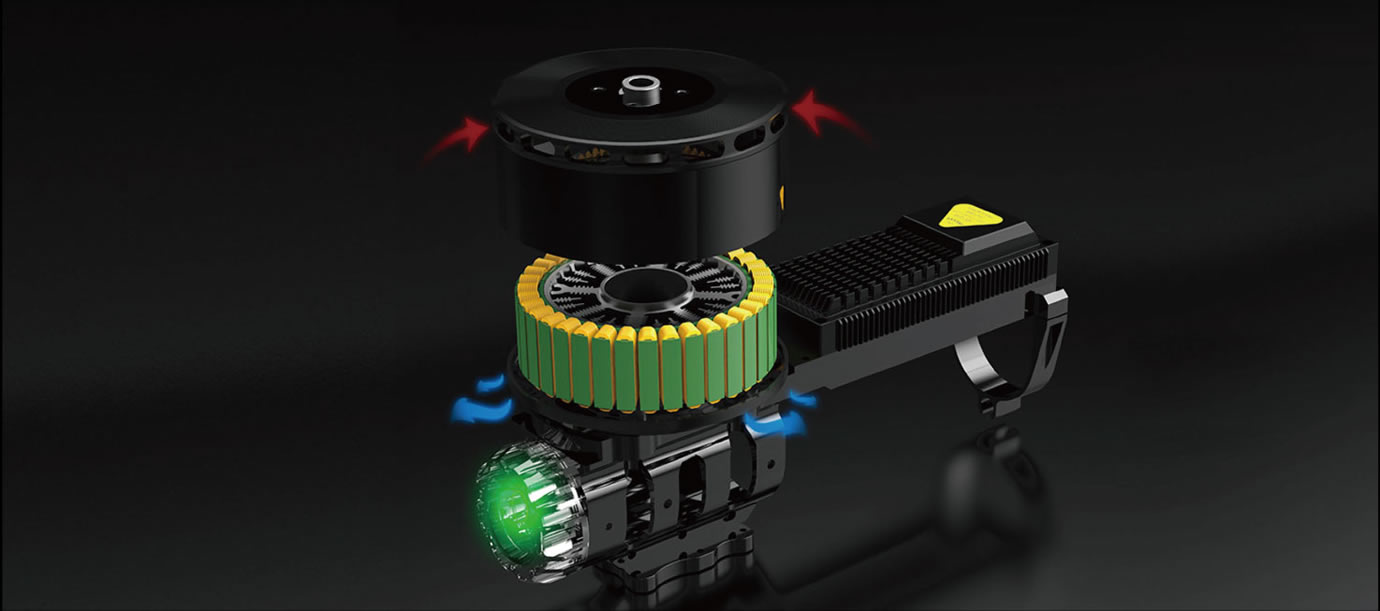

Ultra strong motor with high efficiency cooling
Centrifugal air-cooling system with built-in high-efficiency cooling array. The large cooling fins and rotor flow field further enhance the cooling efficiency. The excellent cooling performance provides a strong guarantee for system reliability, even for continuous operation in hot weather.

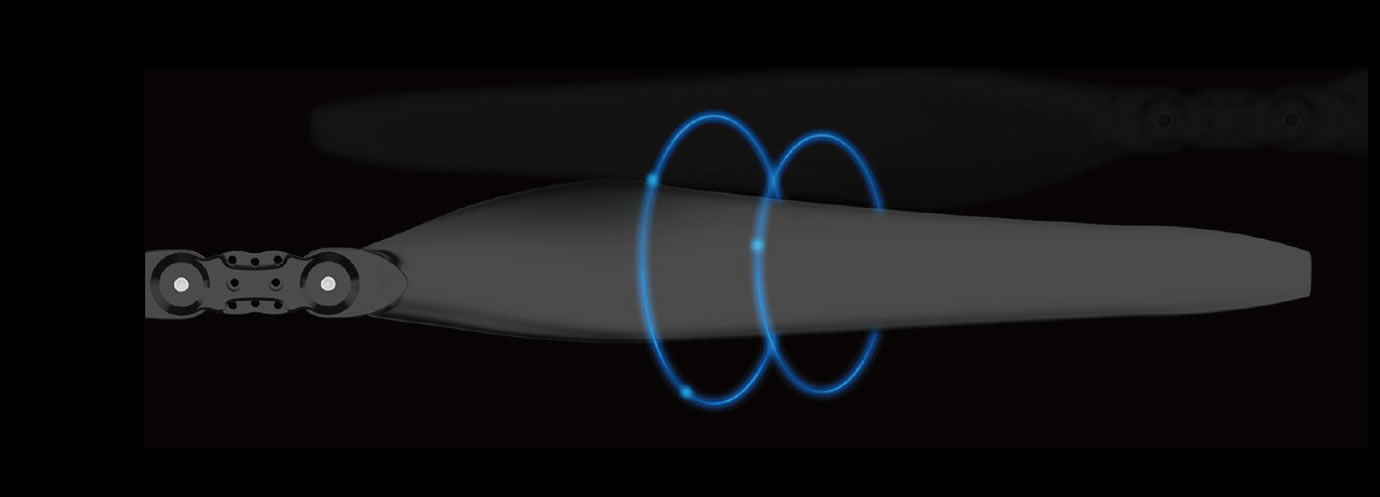

Lightweight and powerful
The propeller is made of special fiber plastic, which provides excellent strength and stiffness while remaining extremely lightweight. The aerodynamic shape of the design, combined with the synergistically optimized electromagnetic design of the motor, provides higher efficiency, quicker response, and longer range.
Rigorous protection
In order to cope with the harsh environment faced by industrial applications, the structure and process are further optimized to ensure tight protection. The ESC adopts structural sealing treatment, together with the secondary sealing of potting adhesive, so as to have excellent waterproof performance. The motor adopts bearing system sealing and stator coating process, which has the ability to prevent rust and corrosion, and can effectively avoid damage caused by rain and dust. In actual application, users can directly carry out flushing maintenance to use safe and reliable, simple and convenient maintenance.
Long-lasting battery life
41000mAh
High-capacity, high-density
14S 62.3V
Semi-solid-state batteries
With exquisite pairing technology, safe and stable raw material formula, stable and smooth discharge curve. Adequate capacity, sufficient multiplier, safe and stable, long life, good cycle times, not easy to bulge, continuous discharge, strong durability, stable output, high capacitance multiplier, strong power.
15 KM of HD Remote Transmission
15KM
Transmission range
D15 to do 15KM wireless digital map transmission, dual-channel full HD video real-time display; We can achieve remote control, data, image three of combination throught our independent research and development of wireless HD map transmission technology，which with adaptive frequency band characteristics, can be switched to the least interference in the work of the frequency band.
Dual control for one drone & Remote Control Relay
The "Dual control for one drone" function is developed for dual operator scenarios, supporting up to two ground terminals to control one sky terminal at the same time, one can be used to control the UAV's flight attitude, and the other can be used to control the gimbal camera, pods and other load applications. In this mode, the two ground terminals can acquire the same camera frame at the same time, or display different camera frames separately.The "remote control relay" function is developed for ultra-long-distance flight, supporting two ground terminals to relay control one sky terminal to achieve the maximum flight distance twice as long as that of a single ground terminal, which can be widely used in the fields of cruise inspection, unmanned distribution, unmanned logistics, and so on.
5.5-inch HD display 1000 nits high brightness display
The handheld station is equipped with a 5.5-inch high-definition display with a maximum brightness of 1000 nits (cd/m²), which can still clearly present ground station information and high-definition mapping images under direct sunlight outdoors.

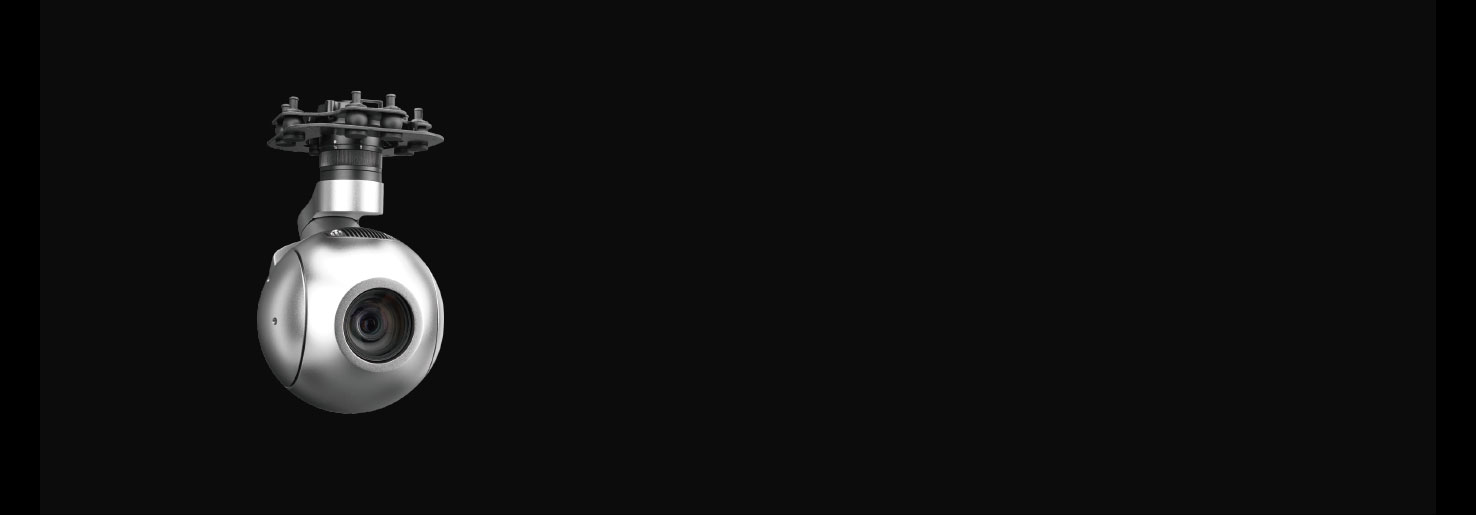

Powerful Gimbal
30X optical zoom gimbal optional
Resolution 4K Ultra HD Video and Photo
Zoom 180x hybrid zoom, 30x optical zoom
Axis of orientation 540° swivel range, quick release and quick install
Pixel 8MP 1/2.7-inch Sony CMOS
Starlight Night Vision Equipped with a starlight sensor equipped with ultra-light-
sensitive CMOS, the users can get impressive real-time
images even in low-light environments
Learn more>>
40x AI Recognition Tracking Gimbal optional
Video Resolution 4K Ultra HD Video & Photo
Zoom 40x optical zoom/32x digital zoom
Pixel CMOS 5.13MP 1/2.8-inch Sony CMOS
AI Intelligent Recognition AI-enhanced intelligent recognition tracking (people, cars)
Axis of orientation Tilt Angle :-45°~ 100°,Roll Angle:±40°/Yaw Angle:±300°/±360°*N
Learn more>>

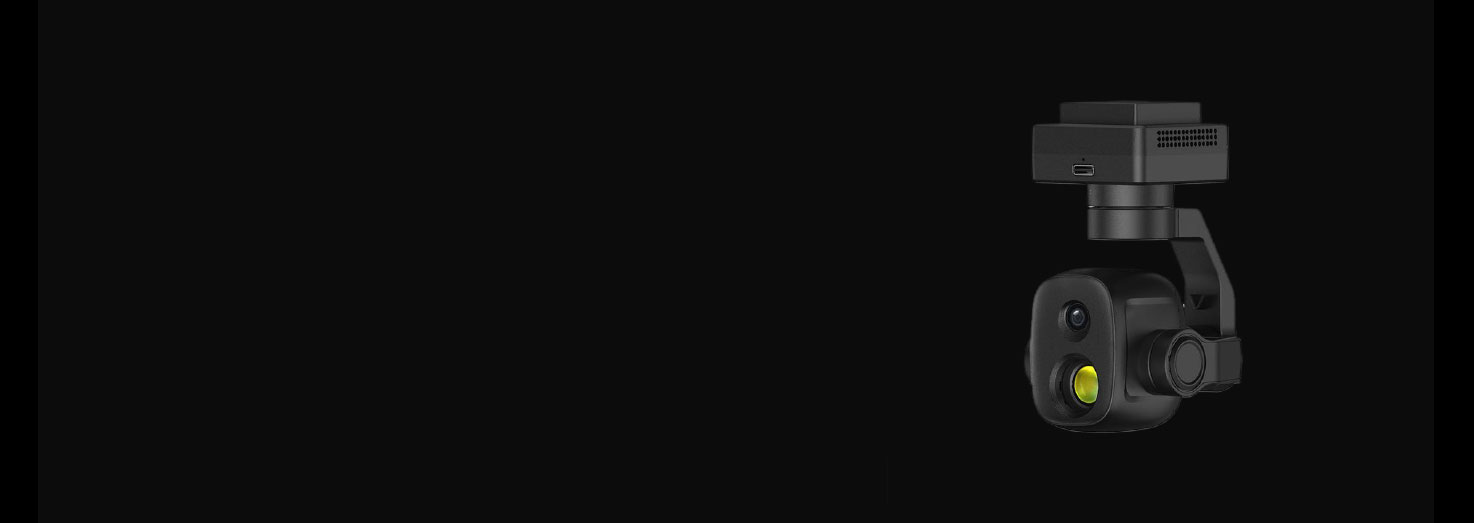

Dual-light gimbals, mini lightweight optional
Video Resolution 4K Ultra HD Video & Photo
Camera Fixed-focus 6X digital zoom
Axis of orientation 540° swivel range, 360° no dead angle
Pixel 8MP 1/2.8-inch Sony CMOS
Thermal Imaging Cameras 640 x 512
Starlight Night Vision Equipped with a starlight sensor equipped with ultra-light-
sensitive CMOS, the users can get impressive real-time images
even in low-light environments
AI Intelligent Recognition AI-enabled intelligent recognition tracking (people, cars, boats)
Learn more>>
Powerful and efficient four-light gimbals optional
Video Resolution 4K Ultra HD Video & Photo
Zoom 30x digital zoom, 180x hybrid zoom
Axis of orientation Infinite rotation, 360° dead angle
Pixel 8MP 1/2.8-inch Sony CMOS
Linkage Shooting Zoom, Wide-angle, Thermal Imaging Camera Simultaneous Photo/Recording
Thermal Imaging Camera 640X512/19mm Thermal Imaging
Highly accurate distance
measurement 1200-meter-class long-range and 0.1-meter high-precision laser rangefinding
AI Intelligent Recognition AI-enabled intelligent recognition tracking (people, cars, boats)
Learn more>>
Matching loading
Speaker
Learn more>>

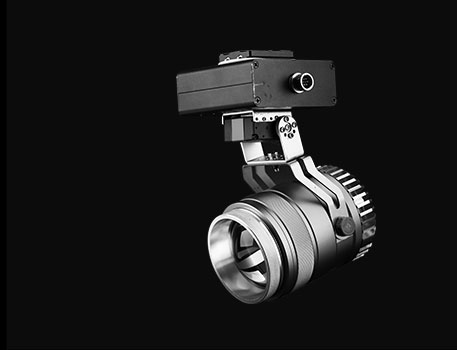

Searchlight
Learn more>>
Thrower
Learn more>>
Providing solutions for different industries
It is suitable for electric power patrol, traffic monitoring, field rescue, fire rescue, air monitoring and other scenarios, which can transmit video to ground receiving equipment in real time and save HD video. It can carry different equipments to meet the needs of different tasks.
