7 inch FPV drone
- 8km image transmission distance
- 29 minutes flight time
- 1.5 kg load capacity
1.5 kg
Load
8KM
Image transmission distance
2000m
Flight altitude
20KM
Flight distance
142km/h
Flight speed
29 minutes
No-load endurance

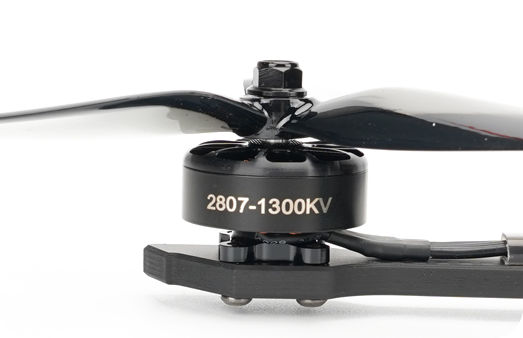

TH 2807-1300KV Motor
Reasonable structural design ensures the heat dissipation performance of the base. Linear power output allows the motor to run more smoothly and efficiently at low speeds, allowing for smoother flight and longer endurance.
F405 55A ESC
The throttle response is non-delayed and the throttle is more linear. The continuous current is 55A, the instantaneous current is 65A, the heat dissipation is good, and the use is extremely simple while taking into account the stability and service life. It supports the feedback of voltage and current, ESC temperature, motor speed and other information.
HQProp 7X3.5X3 Propeller
Taking full advantage of aerodynamic principles, the weight of the blades and the influence of the thickness distribution at each location on the rotational inertia were repeatedly tested and modified, ultimately achieving extremely fast response speed and no vibration at high speed.
HD image transmission
It uses PandaRC VT5804-BAT high-definition image transmission, which has a self-power self-check function, which can quickly check whether the image transmission is working properly; the frequency point lock function can be turned on without disturbing other passengers.

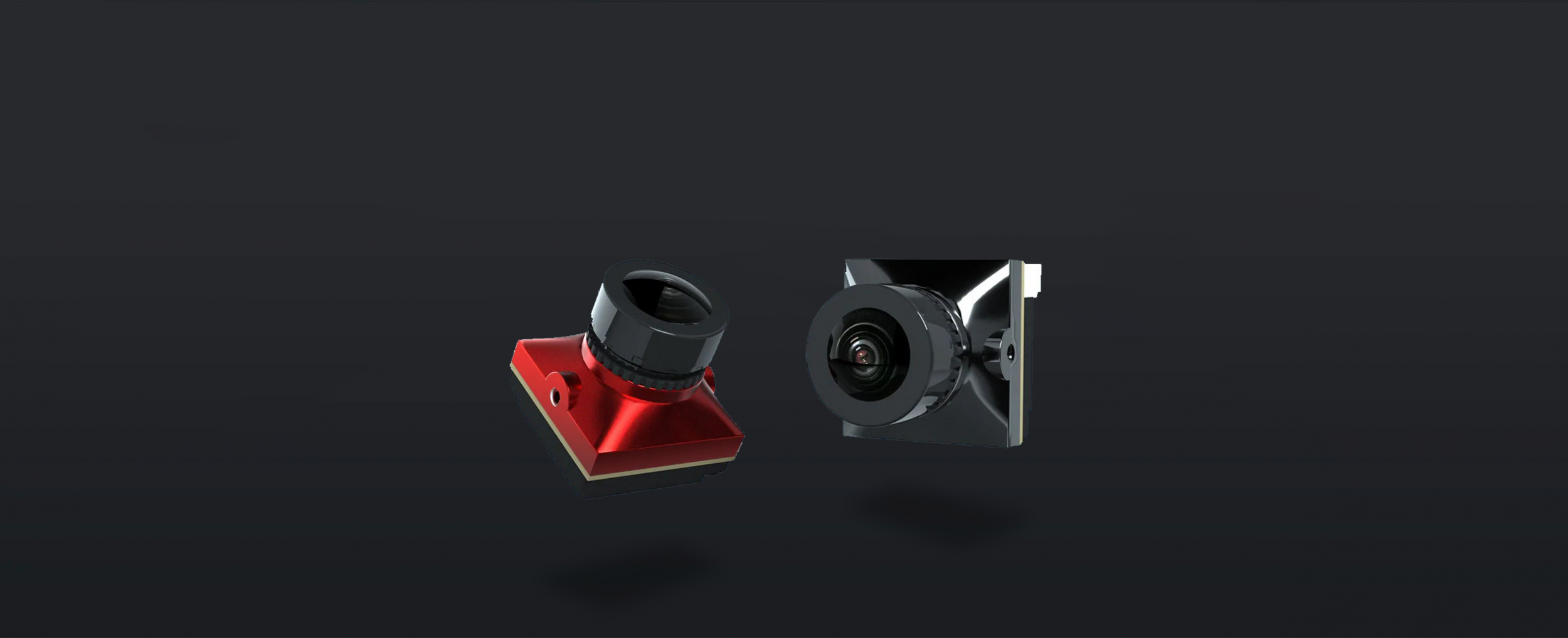

CADDXFPV Ratel2 HD Camera
1/1.8-inch sensor for clearer images
Radiomaster TX12 Remote Control
Built-in ExpressLRS module, upgraded to use STM32F407 main control chip, uses USB-C interface, supports QC3.0 fast charging, new Hall joystick, no need to remove the shell, easy to adjust the stroke; default factory EDGETX open source operating system, supports EDGETX/OPENTX open source operating system; back grip upgraded, better and tighter grip; S1 S2 side slider upgraded, easy to slide built-in SD card.
