J16 Agricultural Drones
Precision and Efficiency
J16 agricultural drone 2024, with 16kg maximum load, 16kg effective load, double pumps 6L/min maximum spraying flow, effective spraying width of 8-10 meters, 150-200 acres per hour,1500 meters super distance remote control,simple and diverse control methods, to meet the needs of the vast majority of agricultural scenarios.
16L work tank
Ultra-light carbon
fiber body
1500 meters
remote control
36-inch propeller with
strong power
FPV HD Camera
Dual atomized
centrifugal nozzles
22000mAh
battery capacity
Dustproof &
waterproof
Optional RTK
positioning
Various spray
nozzles optional
Ultra-light carbon fiber body
Dual atomized centrifugal nozzle
J16 install double atomization centrifugal nozzle, so that the spray system large flow, fine droplets, atomization more uniform and stronger penetration, can improve the utilization rate of pesticides, to get a better agricultural plant spraying effect. In addition to the use of FOC control, high efficiency, with a blocking protection, ESC life longer, centrifugal nozzle special motor, it uses triple motor waterproof structure.
Radar detects the ground and adjusts altitude in real time
J16 realizes one-key takeoff and landing, fully autonomous planning operations, radar detection of ground flight, breakpoint renewal, flight data sharing, and real-time battery power return, making it easier to use and more convenient to operate.
Multi-mission model,Enhancing efficiency and empowerment

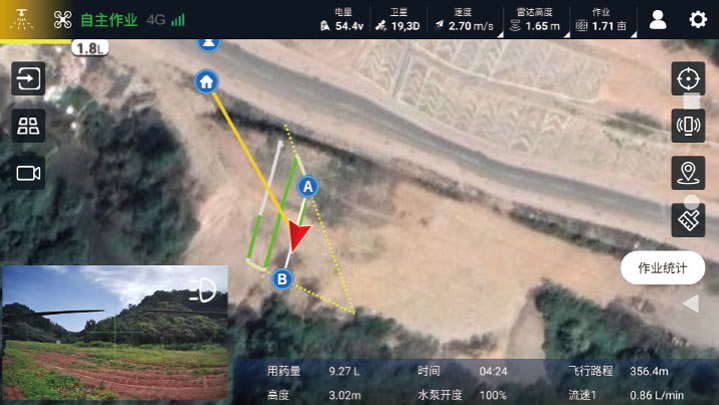

APP provides fully autonomous mode, AB point mode (regular AB point, real-time fine-tuned AB point, manual AB point), and AB-T (trapezoidal) mode for various task modes to realize safe and precise operation.
Full autonomy model
After mapping the plot or selecting the plot directly from the APP plot list - click on the call operation button, then users can enter the route planning page. The route is automatically generated - modify the operation parameters, users can select the starting point to upload the route to the flight control and start the operation.
Regular AB point
This mode is to control the drone to execute L-shaped routes, that is, each time the line change and a spraying line after the line change is a "route unit", this mode of operation can not only meet the requirements of rapid operation, but also to ensure the uniformity of spraying.
Real-time fine tuning of AB points
The AB point real-time fine-tuning function of manual intervention means that during the AB point operation, the AB point course can be adjusted separately by operating the pitch, lengthening or shortening the AB point course, and realizing the instantaneous change of the operation process.
Manual AB Point
Manual AB point is a more flexible and changeable flight mode, which can play a greater role in complex terrain.
AB-T (trapezoidal) mode
The AB-T (trapezoidal) mode adds heading inputs at points A and B to the original AB-point mode to confirm the approximate range of the AB-point operation, which enhances the range of the AB-point operation by focusing on non-horizontal parcel boundaries.
